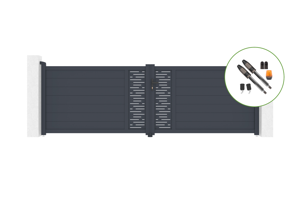

Discover our ARLBERG aluminum swing gate, the perfect balance between style and functionality thanks to its decorative plates with the “Graphic Lines” pattern …
Discover our ARLBERG aluminum swing gate, the perfect balance between style and functionality thanks to its decorative plates with the “Graphic Lines” pattern
The unique aesthetic appearance of this portal will create a strong visual impact, impressing your visitors and passers-by. Its timeless anthracite gray color fits perfectly into any architectural setting, whether modern or traditional.
Made of aluminum, this gate combines lightness and robustness, resistant to bad weather while minimizing maintenance.
Opt for the marriage of modern design and durability with an aluminum gate that combines form and function, enhancing the charm of your property.
Description: Semi-openwork straight swing gate, two equal leaves Material: Aluminum Color: Anthracite gray RAL 7016 Pattern Type: “Graphic Line” Dimensions: Width 392 cm x Height 126 cm Width required between pillars: 397 cm Minimum height of pillars: 140 cm Inspired and designed in France
This gate kit to assemble and install by yourself contains: - 12 aluminum blades (Height 16 cm) - 2 reinforced aluminum blades for motorization (Height 16 cm) - 2 decorative aluminum plates with “Graphic Line” pattern (thickness 20/100) - 2 upper hinges mounted on ball bearings - 2 lower hinges - 1 automatic central stop - 2 receiving stops - 1 barrel lock - 1 handle (Black color) - 5 keys - Finishing covers - Screws
The posts are not included in our kits because they are not essential for the installation of your swing gate if your exterior already has pillars/posts. The minimum height of the pillars for this gate is 140 cm.
The ARLBERG model is also available in other dimensions. Also available in a gate version.
To further adapt your swing gate to your project, all our swing gates can be cut in width (for an asymmetrical design for example or a narrower entrance).
And for even more personalization, you can change the direction or position of the decorative plates.
Gate delivered as a kit. Clear instructions, quick and easy assembly. Find all the necessary information about this product in the technical characteristics.
The TANKER B700 actuator motor is ideal for motorizing swing gates with a maximum length of 6 meters and weighing up to 700 kg maximum (i.e. 3 meters and 350 kg maximum per leaf).
Specially designed for gates with swings, this automatic actuator will allow you to motorize any type of swing gate, whether new or existing, in iron, aluminium, PVC or even wood.
Its sober design allows you to benefit from an easy-to-use electric gate with substantial power, without distorting the aesthetics of your gate and harming your exterior.
This motorization is made up of two motor arms with cylinders, each intended to motorize one leaf of your gate. The pistons located inside the cylinders come out to close the gate and conversely retract when opening.
Delivered with its clear and detailed assembly instructions, you will motorize your gate easily and quickly! Our assembly instructions have been designed to guide you step by step through the correct operation of your automation using clear instructions accompanied by illustrations to facilitate your understanding. In case of need or difficulty, our Casanoov technical team is there to assist you.
The engine includes:
- 2 motors with an electrical voltage of 24 Volts / 80 Watts - A control box - A central gate stop This stopper is to be used if you have a tilting stopper for manual gates. In fact, when you motorize your swing gate, you must ensure that the central stop does not hold it back. It is your motorization which will have the function of locking and securing your swing gate. - 2 mounting brackets for pillar allowing several opening angle configurations. - 2 mounting brackets to fix your motorization to your swing gate - 2 4-key remote controls with protective flap (Batteries included) - Screws to fix the motorization on your posts
Accessories included with the B700 motorisation:
- 1 flashing LED lamp with a power of 3 Watts (equivalent to a power of 30W for an old generation incandescent type bulb) - 1 pair of infrared photocells including: 'transmitter' photocell and 'receiver' photocell
Accessories not included with the B700 motorisation:
The screws to fix the motorization on the gate. This hardware must be adapted to each type of gate and chosen according to the thickness of your gate. For Casanoov Swing gates, we advise you to fix your motorization arms with blind rivets of the Rivkle type with a length of between 8 and 12mm. The mounting bracket must be positioned on the reinforced blades provided for this purpose on all our swing gates and gates.
Features of the TANKER B700 engine:
- Inward and outward opening - Opening angle included up to 120° - The opening angle is conditioned by your installation constraints (You will find all the installation instructions in the instructions for free download on the product page) - Manual disengagement of the motorization in the event of a power cut - Length of the retracted product 86.8 cm - Length of the open product 121.8 cm. Arm working length is 46.7cm - The internal rotation speed is 350 revolutions per minute, almost 60% faster than the B150 model! - Arm extension speed: 2.4cm / second - Opening performance may vary when using soft open and soft close mode - The opening and closing speed as well as the drive power can be adjusted to 20 different positions. - After opening, the closing of the gate can be automatic according to your chosen time interval between 0 and 99 seconds - Pedestrian mode: You can choose to open only one out of two leaves - Rain protection class: IP 55 - Motor weight: 23 Kg - Operating temperature: -45°C to +50°C - Push force 1090N and maximum force 1110N - Electrical connection power between your house and the motor: 20VAC±10%/110VAC±10% - Auto stop function: If your gate encounters an obstacle then the opening or closing of the gate is automatically interrupted
You can associate external accessories with an operating power of 24V such as: emergency battery, magnetic or electric lock, push button
Installation Tips:
Always check that your installation distances are included in the installation table. The installation distances determine the opening angle of your gate. Our Casanoov technical team is there to assist you.
Welcome to Casanoov! Specializing in the online sale of equipment dedicated to the home environment, Casanoov makes it a point of honor to offer you a complete offer to delimit your exterior according to the latest market trends at affordable prices. Ultra competitive prices. Quality at the right price! This is Casanoov's motto. Discover our wide range of aluminum swing gates, sliding gates, gates and fences, the latest trend in terms of material. All our products have been thought out and designed in kit form. Easy and quick to install, assembling your Casanoov gates and fences yourself will be child's play. All our models have been designed to combine both safety and aesthetics. Casanoov offers you offers the choice to meet all your desires and requirements: classic models with full filling, semi-perforated, perforated or ultra perforated (barred) or more modern with our design models. At Casanoov, everything is done to satisfy you! Our design models are inspired and designed in France, they are available in 6 variations and each has unique decorative plates, designed by us for you. Choose the range that best suits you for a modern exterior that suits you. And for an even more modern exterior, think about automating your entrance and browse our category of motorization which offers you automations for swing and sliding gates adapted to your needs. Also discover all our accessories for a harmonious exterior, such as our aluminum posts in colors matching our gates, gates and garden fences. To make your choice easier, you have all the technical information as well as visuals in situation on all of our product sheets. Payments are secure and delivery is free. Enjoy and happy shopping!
Assembly instructions - KIT-000478
