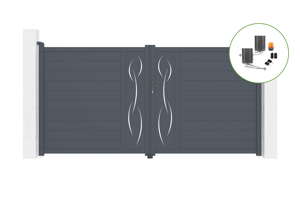

LIFE 350B180 electric swing gate + BUNKER B500 motorization

SKU : PAC-001373

15929 kr

This motorized gate pack contains:
Gray LIFE design swing gate
Width 350cm and Height 176cm
Worm screw motorization (up to 400kg)

Victim of his success!

Alert me

Notify me when this product is back in stock.

Technical data

Aluminium driveway folding gate 3,5m LIFE 350B180 Grey

Locking system

Cylinder lock

Opening system

Fighting

Blade section

160*15 mm

Amounts Section

78*47 mm

Sleeper Section

70*30 mm

Type of lock

Keys (5)

Assembly time

8 h

RAL

7016

Stud thickness

1.5 mm

Aluminium driveway folding gate 3,5m LIFE 350B180 Grey

Locking system

Cylinder lock

Opening system

Fighting

Blade section

160*15 mm

Amounts Section

78*47 mm

Sleeper Section

70*30 mm

Type of lock

Keys (5)

Assembly time

8 h

RAL

7016

Stud thickness

1.5 mm

Sleeper thickness

1.3 mm

Supplied accessories

Yes

Pivoting system

Ball bearing

Width between pillars

355 cm

Central stop

Yes

Eligibility Extension of warranty 10 years

Pattern / Design

LIFE

Available in sliding

Yes

Height

176 cm

Warranty

2 an(s)

Width

350 cm

Operating clearance

30 mm

Opening direction

Towards the house, See Technical drawing

Rod assembly

Self-drilling screws

Stud/rail assembly

Self-drilling screws

Finishing

Powder coating

Compatible engines

Yes

Eligibility Extended warranty 5 years

Recommended number of persons for assembly

Type of filling

half openworked

Handle colour

Black

Handle material

Aluminium

Number of upper hinges

End stop

Minimum pillar height

190 cm

Thickness of the blades

1.2 mm

Top cover cap

Yes

Color

White

Assembly instructions

Yes

Number of lower hinges

Main material

Aluminium

Frame material

Aluminium

Compatible motorization type

With articulated arm and jacks

Weight of package No.1

7.0 kg

BUNKER B500 swing gate motorization

Recommended number of persons for assembly

Maximum weight per fan

250 kg

External battery compatible

Yes

Arm speed in centimeters per second

1.5cm/s

Protection against rain

IP55

Assembly time

4 h

Maximum opening angle

110 °

Housing size

29.5*20*18 cm

Opening time

15 seconds

Partial pedestrian opening

Yes

Minimum opening angle

90 °

Nominal operating thrust

6300 Nm

Supply voltage

230VAC +/- 10%

Manual release

Yes

Maximum size per fan

3 m

Flashing light compatible

Yes

Mounting accessories included

Yes

Gross weight

29.7 kg

Operating temperature

-45 ° C à +50 ° C

Compatible for portals

Aluminum, pvc, wood, iron

Co-ownership mode

Yes

Automatically programmable closing after opening

Yes

Type of mechanism

Articulated arms

Number of remote controls included

Gate weight up to

500 kg

Assembly instructions

Yes

Obstacle detection

Yes

Key lock compatible

Yes

Gate mounting brackets included

Yes

Electronic cabinet with electronic board

Includes

Length of open arm

97.2 cm

Amperage

10 A

Keyboard compatible

Yes

Gradual opening / closing

Yes

Number of remote control keys

Arm rotation speed in revolutions per minute

54 RPM tr/min

Screws included

Yes

Length of the closed arm

59.7 cm

Photocell Compatible

Yes

LED flashing light included

Yes

Warranty

2 an(s)

Power consumption

160 W

Power

24 V

Maximum thrust

6500 Nm

Adjustment of the opening and closing speed

Yes

Eligibility Extended warranty 5 years

Eligibility Extension of warranty 10 years

Maximum number of associable remote controls

120

Infrared photocells included x2

Yes

Central gate stop included

Yes

Pole mounting brackets included

Yes

Weight of package No.2

29.7 kg

Description

This motorized gate pack contains:
Gray LIFE design swing gate
Width 350cm and Height 176cm
Worm screw motorization (up to 400kg)

Aluminium driveway folding gate 3,5m LIFE 350B180 Grey

The LIFE swing driveway gate with its graphic design will bring modernity and elegance to your entrance thanks to its unique decorative …

Aluminium driveway folding gate 3,5m LIFE 350B180 Grey

The LIFE swing driveway gate with its graphic design will bring modernity and elegance to your entrance thanks to its unique decorative panels with their "LIFE" style patterns

Description : Modern swing gate with vertical decorative panels
Material : Aluminium
Colour : Anthracite Grey (RAL 7016)
Type of pattern : "LIFE"
Dimensions : Width 350 cm x Height 176 cm
Required width between pillars : 355 cm
Minimum height of pillars : 190 cm
Inspired and designed in France

This do-it-yourself modern double gate kit with laser design contains ::
- 18 powder coated slats (Height 16 cm)
- 2 reinforced powder coated slats for motorisation (Height 16 cm)
- 2 decorative aluminium panels with "LIFE" pattern (Thickness 20/100)
- 2 upper hinges
- 2 bottom hinges
- 1 central stop
- 2 reception stops
- 1 sash lock
- 1 double handles (Black colour)
- Set of 5 keys
- Finishing caps
- Screws and bolts

If you wish to motorise your double leaves gate, Casanoov suggests packs in the "Swing Gate" category
You will find promotional packs offering you a set consisting of a swing driveway gate of your choice accompanied by the appropriate automation.

In case your installation requires pillars, promotional packages are also available containing a swing driveway gate of your choice, together with two aluminium posts to match the chosen entrance gate.
FYI : The minimum pillar height for this gate is 190cm

The LIFE model is also available in other sizes and colours.
For a harmonious exterior, we propose matching sliding gates, garden gates and fences.

To further adapt your swing gate to your project, all our double gate gates can be cut to width
(For an asymmetrical design for example or a narrower entrance).

And for even more customisation, you can change the direction or position of the decorative plates.

Driveway gate delivered in kit form.
Clear instructions, quick and easy assembly.
You will find all the necessary information about this product in the technical data.

BUNKER B500 swing gate motorization

The BUNKER B500 motorization offers the unique advantage of realizing a natural movement, very close to manual opening thanks to its articulated arm mechanism.
This automation dedicated only to gates with leaves will allow you to motorize any type of swing gate in iron, aluminium, PVC, wood up to 6 meters long and 500 kg maximum (3 meters and 250 kg per leaf).

This type of motorization consists of two motorized and articulated arms, each intended for one leaf of the gate.

This engine kit includes:
- 2 motors with an electrical voltage of 24 Volts/160 Watts
- A central gate stop
This stopper is to be used if you have an automatic mechanical stopper.
In fact, when you motorize your swing gate, you must ensure that the central stop does not hold your gate.
It is your swing gate motorization that will secure your entrance.
- 2 pairs of articulated arms
- 2 4-button remote controls (batteries included and protective flap)
- 1 LED flashing light
- 1 pair of photocells
- Screws for fixing on posts/pillars

Accessories not included with the BUNKER B500 motorisation:
The screws to fix the motorization on the gate. This hardware must be adapted to each type of gate and depends on the thickness of your gate.
For CASANOOV swing gates, we advise you to fix your motorization arms with blind rivets of the RIVKLE type with a length of between 8 and 12mm.
The mounting bracket must be positioned on the reinforced blades provided for this purpose on all our swing gates and gates.

BUNKER B500 features:
- Speed control
- Soft start
- Automatic closing
- Pedestrian mode (opening with a single leaf)
- Manual release
- Limit switch adjustment
- Unlocking of motors in the event of a power cut
- Possibilities of incorporating a backup battery

This motorization kit for swing gate is delivered as a kit
Clear instructions, simple and quick assembly.
Find all the necessary information about this product in the technical characteristics.

In case of difficulties or questions during the installation of your automatic gate, our Casanoov technical team is there to assist you!
